Important: To avoid issues, we strongly recommend that when you work with multiple screens, all screens have the same resolution and orientation.
When you Open a Player, select the Screens tab to customize the screen layout, quantity and orientation.
By default when you open the tab, it will load the last configuration.
Automatic Configuration Detection
If you are working on a Windows or Linux PC, you can use the Screens detection button to automatically apply the detected configuration.

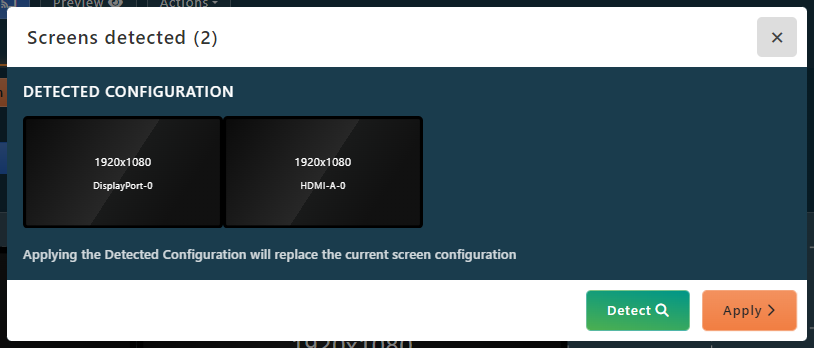

This will display a preview of the detected configuration so you can review it and apply if it’s correct.
Warning: If you apply the Detected Configuration it will replace the Current Screen Configuration
Manual Screen Configuration
Customize Screen Resolution and Orientation

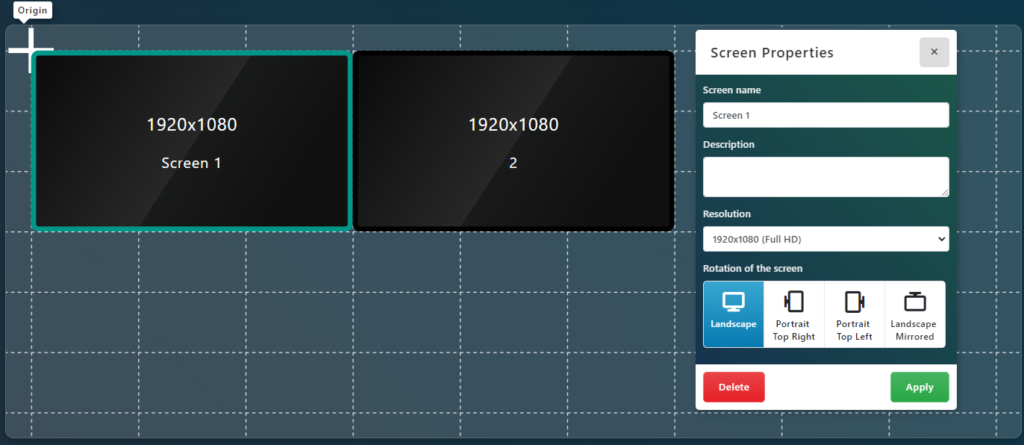

Click on any screen to open it’s properties. From there, you will be able to customize it’s name, resolution and orientation.
When you finish your modifications, click on Apply to automatically update the other screen position.

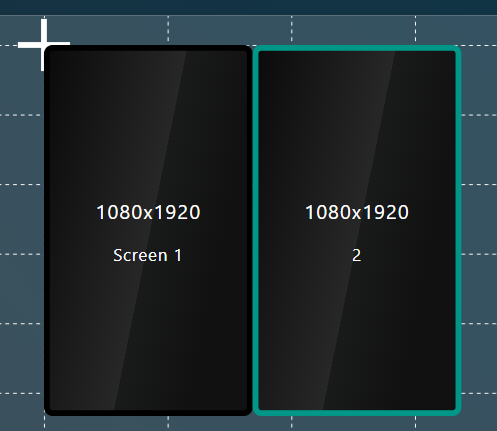

For example after rotating all screens to portrait.
Add and Remove Screens

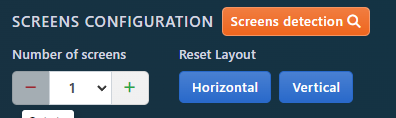

You can Add or Remove Screens by clicking on the + or – buttons
Let’s add 2 screens. Note that they will appear on the right on the previous one.
Automatic Layout

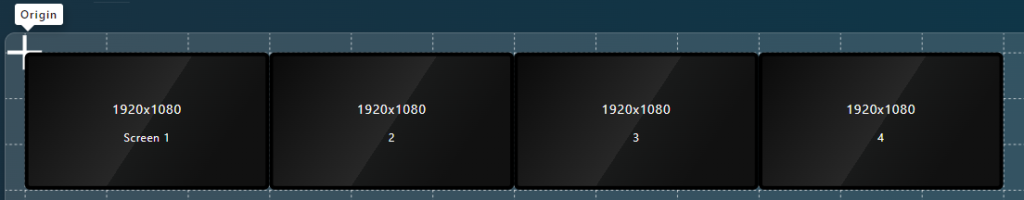

By default, when adding screens, the layout is horizontal, meaning that if you add up to 4 screens they will look like above.

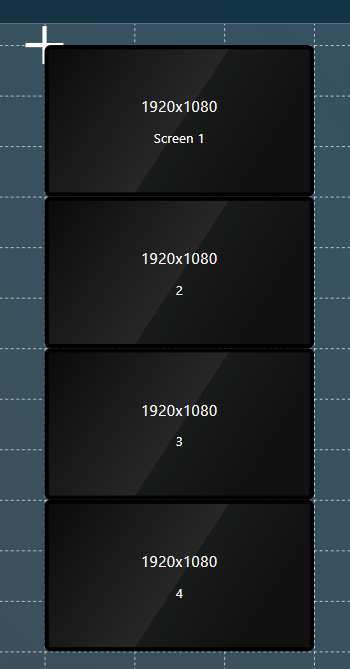

After applying a Vertical Layout
After applying a Horizontal Layout
Rearrange and Position screens

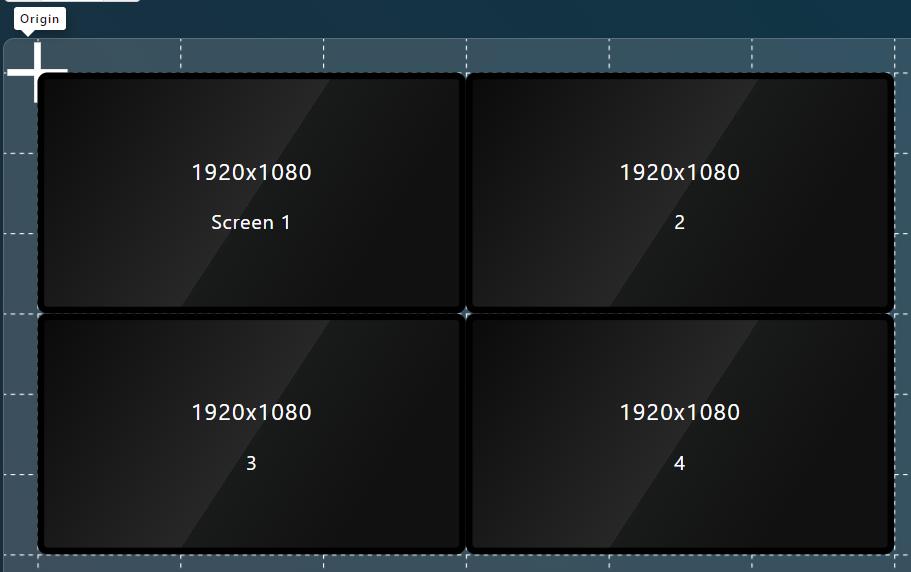

You can drag and drop any screen on the available area to customize the layout as you would like.
This is also helpful, if you have to change the order of the screens without the ability to physically change the cabling.

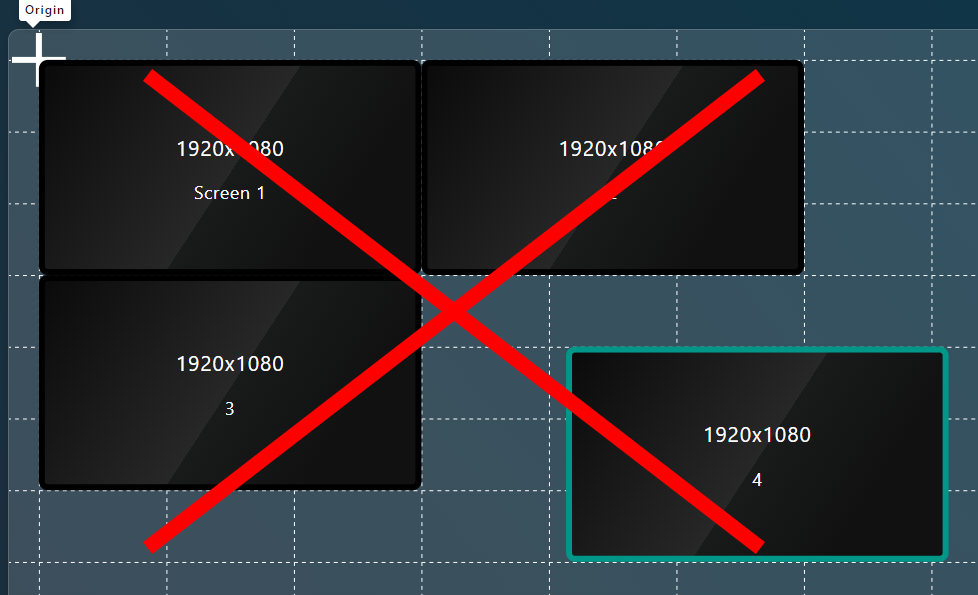

Important: do not leave space between screens.
Advanced Example

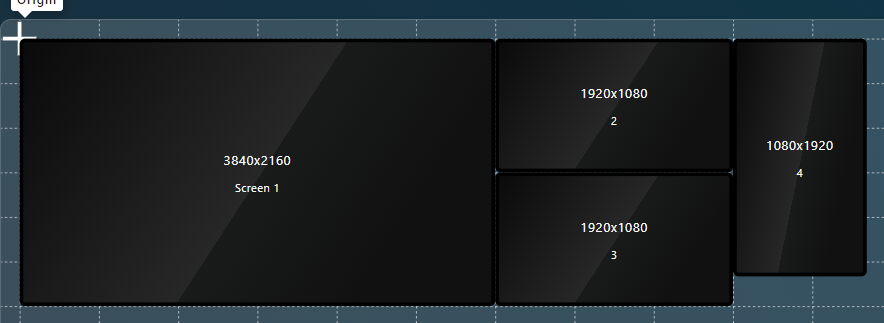

By using a combination of the instructions above, even though it’s not recommended, you could theorically create a layout like the one below.
