The base screen resolution is 1920x1080px if the screens are in landscape, and 1080x1920px if the screens are in portrait.
Here is the list of files supported by the display system:
Pictures
For Windows / Linux / Android
You can import images in the following format: jpg, png, svg, bmp, webp and gif
Important: Images should always be in RGB and at 72dpi.
Remember to check that the size of your images corresponds to the display resolution (avoid importing images in 10000x5000px if it is not necessary).
For Tizen TVs
The following table lists the supported image formats and the limitations.
Warning: with a Tizen TV, PNG files are limited to 4096x4096px
| File Extension | Format | Resolution | Limitations |
|---|---|---|---|
| *.jpg *.jpeg | JPEG | 16320×12240 (Since Tizen 7.0) | – |
| 15360×9024 (Tizen 4.0 ~ Tizen 6.5) | |||
| 15360×8640 (Up to Tizen 3.0) | |||
| *.png | PNG | 4096×4096 | |
| *.bmp | BMP | ||
| *.mpo | MPO | 15360×8640 | The MPO format is partially supported. |
| *.heic | HEIF (Since Tizen 6.0) | 16320×12240 (Since Tizen 7.0) | HEIF supports only a single, grid-type image with a minimum resolution of at least 512 pixels in width or height. |
| 12000×9000 (Tizen 6.0 ~ Tizen 6.5) |
More information on https://developer.samsung.com/smarttv/develop/specifications/media-specifications.html
Videos
For Windows / Linux
You can import videos in the following format: mp4 with H264 and H265 codec, as well as webm files with VP8 and VP9 codec are supported.
For Tizen TVs
Compatibility for 24TV_STANDARD1 (UHD)
| File Extension | Container | Video Codec | Resolution | Frame Rate (fps) | Bit Rate (Mbps) | Audio Codec |
|---|---|---|---|---|---|---|
| *.avi *.mkv *.asf *.wmv *.mp4 *.mov *.3gp *.vro *.mpg *.mpeg *.ts *.tp *.trp *.flv *.vob *.svi *.m2ts *.mts | AVI MKV ASF MP4 3GP MOV FLV VRO VOB PS TS | H.264 BP/MP/HP | 4096×2160 | 60 | 60 | AC3 LPCM ADPCM(IMA, MS) AAC HE-AAC WMA DD+ MPEG(MP3) MPEG-H AC-4 OPUS G.711(A-Law, µ-Law) |
| HEVC (H.265 Main10) | 80 | |||||
| Motion JPEG | 3840×2160 | 30 | ||||
| MPEG-4 SP/ASP | 1920×1080 | 60 | 20 | |||
| Windows Media Video 9 (VC-1) | ||||||
| MPEG-2 | ||||||
| MPEG-1 | ||||||
| Microsoft MPEG-4 version 1/2/3 | 30 | |||||
| Windows Media Video 7 (WMV1) / Video 8 (WMV2) | ||||||
| H.263 Sorenson | ||||||
| VP6 | ||||||
| AV1 | 3840×2160 | 60 | 40 | |||
| *.webm | WebM | VP9 (Profile 0/2) | 80 | Vorbis | ||
| VP8 | 1920×1080 | 20 | ||||
| AV1 | 3840×2160 | 40 | ||||
| *.rmvb | RMVB | RV8/9/10 (RV30/40) | 1920×1080 | 20 | RealAudio 6 |
More information and TV from previous years or models https://developer.samsung.com/smarttv/develop/specifications/media-specifications/2024-tv-video-specifications.html
How to convert Videos

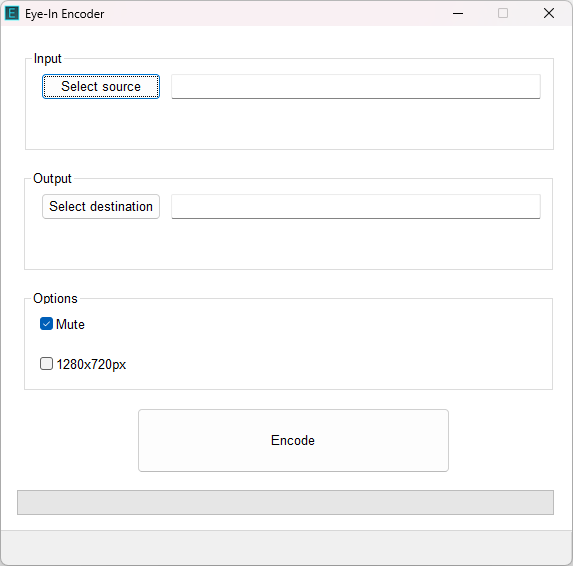

If you have a video with an incompatible format, you can use the Eye-In Encoder software (an addon that comes with the Eye-In Storyboard software). You can download it here for free
Launch the software, select your source file, then where you want to save the new version. By default the sound will be removed from your video, if you do not want this, uncheck the « Mute » box.
Eye-In Storyboard
You can import files created with Eye-In Storyboard in the following format: eil and eis
Microsoft Office Docs
You can import Microsoft Office documents in the following format: ppt, pptx, doc, docx, xls and xlsx
Remember to configure automatic transitions in Power Point so that the slides jump from one to the other.
Adobe PDF
You can import Adobe pdf files.
